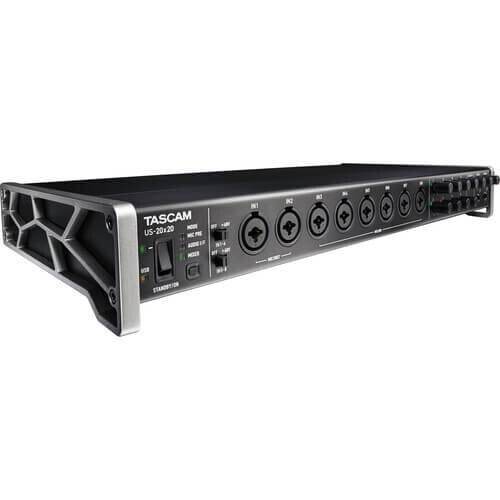

Tascam US-20x20 USB Ses Mikseri

Name: Tascam US-20x20 USB Ses Mikseri
Brand: Tascam
SKU: T14315
Availability: OutOfStock

T14315

US-20X20

0 Değerlendirme

Yorum Yaz

Ürün Açıklaması
Yorumlar (0)
Size Ulaşalım
Aksesuarlar ⮯

20 Giriş /20 Çıkış
8 Ultra-HDDA Microphone Preamplar
Phantom Power

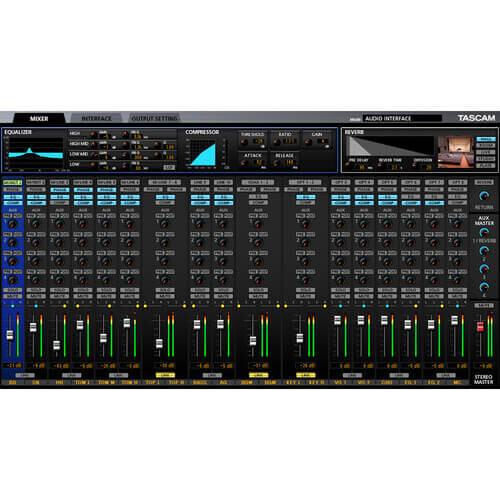

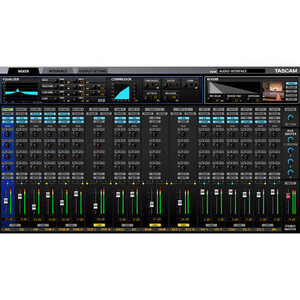

DSP Monitor Mixer
4-Band EQ, Compression, Reverb
ADAT ve Coaxial S/PDIF I/O, MIDI I/O, Wordclock I/O
24-Bit/192 kHz Format Ses Kaydı
Mac OS X, Windows, iOS Uyumlu

Ses Girişleri

Microphone Girişi

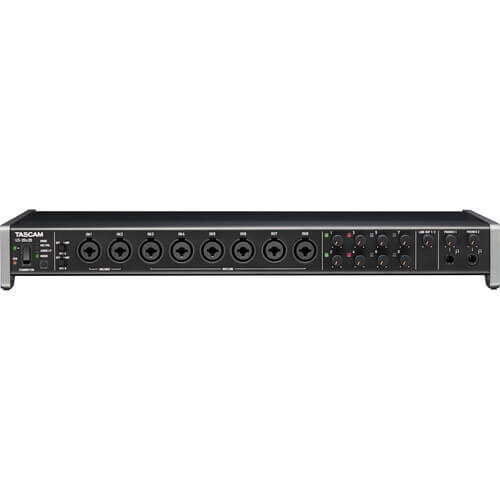

Ön Girişleri 1 to 8, Balanced
Connector: XLR-3-31(1: ground, 2: hot, 3: cold )Input Impedance: 2.4 kOhms
Nominal girişLevel, Maximum Gain: -68 dBu (0.0003 Vrms)
Nominal giriş Level, Minimum Gain: -12 dBu (0.195 Vrms)
Maximum Input Level: +8 dBu (1.947 Vrms)
Gain: 56 dB

Enstürüman Girişi

Ön girişler 1 and 2, Unbalanced (When Set to 'INST' at LINE/INST Switch)
Bağlantı: 1/4' (6.3 mm) TS-jack (T: hot, S: ground)
Giriş Impedance: 1 MOhms or more
Nominal Input Level, Maximum Gain: -68 dBu (0.0004 Vrms)
Nominal Input Level, Minimum Gain: -12 dBV (0.2512 Vrms)
Maximum Input Level: +8 dBV (0.2512 Vrms)
Gain: 56 dB

Line Girişi

Front Inputs 3 – 8, Balanced
Connector: 1/4' (6.3 mm) TRS-jack (T: hot, R: cold, S: ground),
Input Impedance: 10 kOhms
Nominal Input Level, Minimum Gain: +4 dBu (1.228 Vrms)
Maximum Input Level: +24 dBu (12.182 Vrms)
Gain: 56 dB

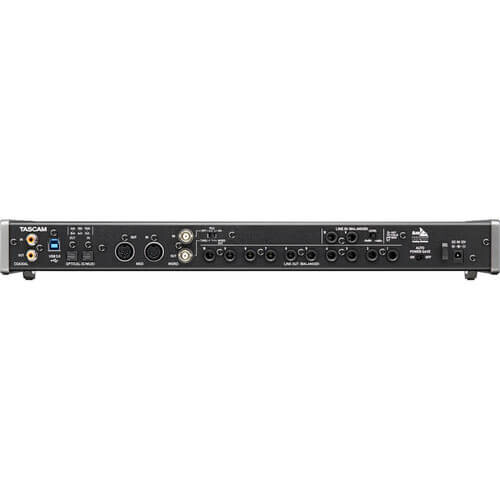

Rear Inputs 9-10, Unbalanced (When Set to 'INST' at LINE/INST Switch)
Connector: 1/4' (6.3 mm) TS-jack (T: hot, S: ground),
Input Impedance: 10 kOhms
Nominal Input Level: -10 dBV (0.3162 Vrms)
Maximum Input Level: +10 dBV (0.3162 Vrms)

Rear Inputs 9 – 10, Balanced (When Set to “+4 dBU” at LEVEL Switch)
Connector: 1/4' (6.3 mm) TRS-jack (T: hot, R: cold, S: ground),
Input Impedance: 10 kOhms
Nominal Input Level, Minimum Gain: +4 dBu (1.228 Vrms)
Maximum Input Level: +24 dBu (12.182 Vrms)
